ISCAR is further expanding its line of ISO standard turning tools:
A. New rough turning tools and inserts have been added:

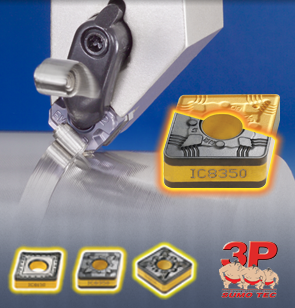

● 80° rhombic inserts in 16, 19 and 25 mm cutting edge sizes and square inserts in 15, 19 and 25 mm cutting edge sizes. The new inserts are available in single- and double-sided configurations.
They are made from ISCAR’s most advanced SUMO TEC PVD and CVD grades.
● Two geometries, CNMG 190612-MR and CNMM 190616-MH in IC807 grade, were designed especially for machining stainless steel and high temperature alloys. These are initial items and there will be more in the near future.
● Two RCMX 25 and 32 mm round inserts, used mainly for railway wheel machining.
B. The HELITURNLD family has been expanded by adding new trigon and DNMX inserts and a 16 mm CNMX insert.
The new inserts have very positive radial, helical cutting edges and positive rake angles - a combination which substantially reduces the cutting forces.
The CNMX and WNMX insert corners have a wiper configuration which produces high surface finish even at high feed conditions, which in many cases can eliminate a finishing cut. The corner angle is 88°, which provides increased strength.
HELITURNLD inserts were designed for heavy machining applications. Their unique design ensures reliable, Fast Metal Removal. CNMX and WNMX inserts require special tools with appropriate seats. DNMX inserts can be mounted on standard tools.
