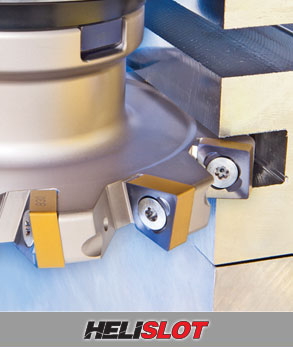

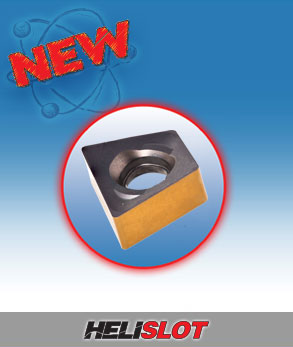

 FDN-XN13 Efficient Full Slot Milling Cutters Carrying Square Inserts with 8 Cutting Edges FDN-XN13 is a new family of full slot milling cutters with square inserts that provide an effective and economical solution for machining slots and grooves. ISCAR’s new FDN-XN13 cutters carry XNMU 130608PNM-MM patent pending configuration inserts. XNMU 130608PNM-MM is a robust double-sided square insert, featuring 8 (4 right-hand and 4 left-hand) helical cutting edges and unique twisted upper and bottom surfaces. The inserts, when clamped on the cutter, produce staggered teeth with alternating axial rakes, which contribute to very stable cutting even under high chip load. The twisted positive rakes cause a smooth cutting action, and it is rigidly secured in the cutter. Due to a combination of staggered teeth, positive rake and reliable insert clamping, the cutters feature high performance reliability and productivity. The FDN-XN13 flange-type cutters are available in the diameter range of 32-200 mm for 14-24 mm slot widths. The unique XNMU 130608PNM-MM inserts are probably the first double-sided inserts with 4 R.H. and 4 L.H. helical cutting edges for slot milling cutters. They are made from the advantageous SUMO TEC carbide grades, designed for general applications on alloy steel, ferritic and martensitic stainless steel and cast iron components. Also special Radiuses up to 2.4mm and special FSB and SSB tools. |
||
 |
|
