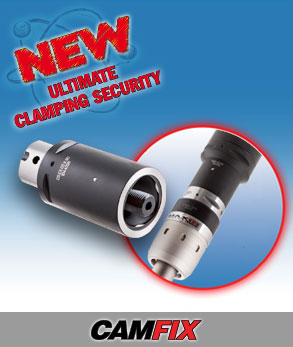

 CAMFIX Female Modular System with Various Shank Options ISCAR is introducing new integral adapters with CAMFIX female connection (ISO 26623-2 standard) on one side and these shank types on the other side: HSK, DIN69871, BT and the CATERPILLAR. In addition, new male-female CAMFIX extensions and reducers. The CAMFIX female connection adapters enable using the CAMFIX modular systems on machine tools with different spindle connections to achieve maximum rigidity and stiffness provided by the CAMFIX (ISO 26623-1/2 standard) coupling. The CAMFIX system features high accuracy, excellent rigidity against bending forces, stability and high torque transfer. This is achieved due to the polygonal cone and face contact. The new adapters enable assembling long reach tools with the most strong and stable connection. The combination of the new CAMFIX holders and extensions, together with the MB modular boring system connection also extend the deep boring application options. |
|
|
 |
|
